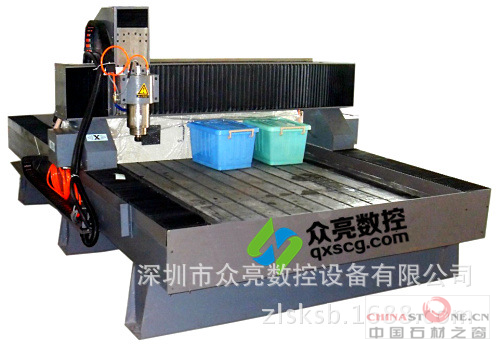

眾亮數控—石材雕刻機
應用行業/ApplicableIndustry
適用于：石雕,磚雕,玉雕,墓碑,裝飾裝潢,園林藝術,工藝品.可加工材質：大理石、玉石、瓷磚、人造石、玻璃、銅、鋁、鐵等材質
Suitable for industries such as billboards,model industry,electronics and electic appliances, decoration industry, toysand gifts, furniture manufacturing, etc. Available materials: acrylic, doublecolor boards, plastic, wood, ABS, PVC, MDF, PCB, copper, aluminium and variousnon-ferrous metals
產品描述/Productdescription
1.床身為大方管焊接結構，龍門與立柱均為鋼結構
2.三軸均為臺灣進口直線導軌，齒條傳動
3.設備使用自動水循環系統與水槽設計,確保刀具更長使用受命
4.整機采用防水設計,確保傳動部位與電路部位的耐用與安全
5.主軸電機為大功率水冷變頻主軸,防水設計
6.可根據客戶要求定做非標機型
1.The overall body cast iron beds, andsecondary tempering precision machining; thick beams and columns for thewidened designed to 15MMnatural marble carving knife
2.The device with automatic water systemand tank design, to ensure that longer use of the tool was ordered
3.The machine uses water-proof design, toensure transmission parts and circuit parts of the
4.Spindle motor frequency spindle highpower water-cooled, water-proof design
5.Ccan be tailored according to customer demandnon-standard models
技術參數/TechnicalParameter
| 產品型號/Model
|
zl-S1325
|
| 工作行程/Working area
|
1300*2500*160mm
|
| 外觀尺寸/Volume
|
3200*2020*1250mm
|
| 主軸功率/Main axle power rate
|
2.2/3/4.5/5.5KW(可選)
|
| 主軸轉速/Main axle rotating speed
|
6000-24000 rpm/min
|
| 最大加工速度/Max.Working speed
|
8000mm/min
|
| 最大進料高度/Feeding height
|
180mm
|
| 刀柄直徑/Engraving tools
|
3.175/4/6/12.7mm
|
| 重復定位精度/Repositioning Accuracy
|
0.02mm
|
| 文件格式/Supported File Format
|
DXF,PLT,G代碼,MMG,U00,NC,ENG
|
| 工作電壓/Power
|
AC220V(380V)/50HZ AC110V/60HZ(可選)
|
| 整機重量/Weigth
|
1600kg
|
